In modern manufacturing, precision, speed, and consistency are essential for producing competitive products at scale. One important tool that supports these goals is the Custom 16‑Cavity Sealant Plunger Injection Mold. This type of mold is designed to produce multiple sealant plunger parts in a single injection cycle, making it an efficient solution for manufacturers that require high output, stable quality, and cost-effective production.

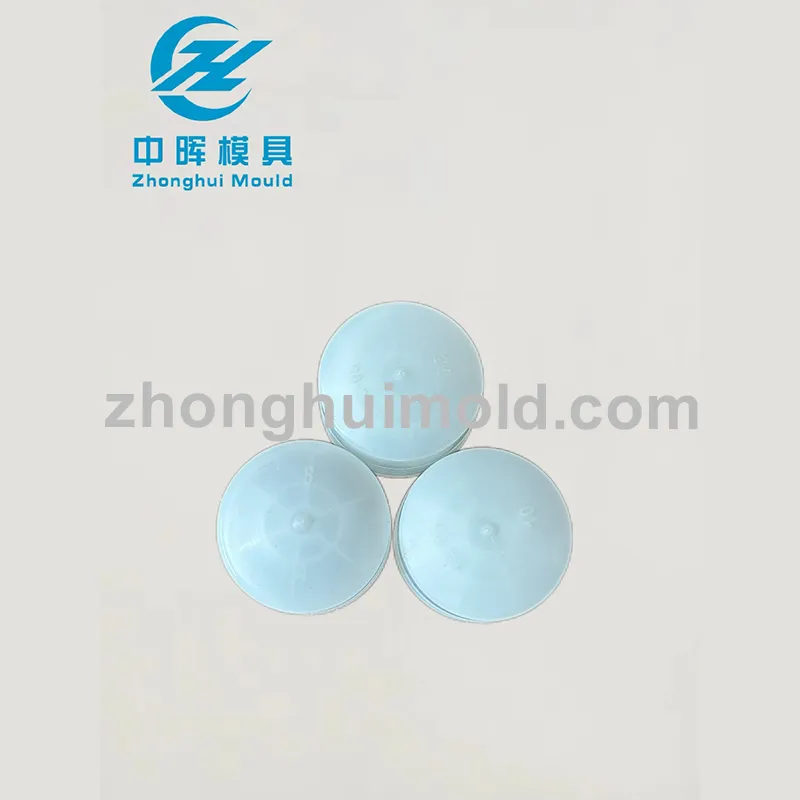

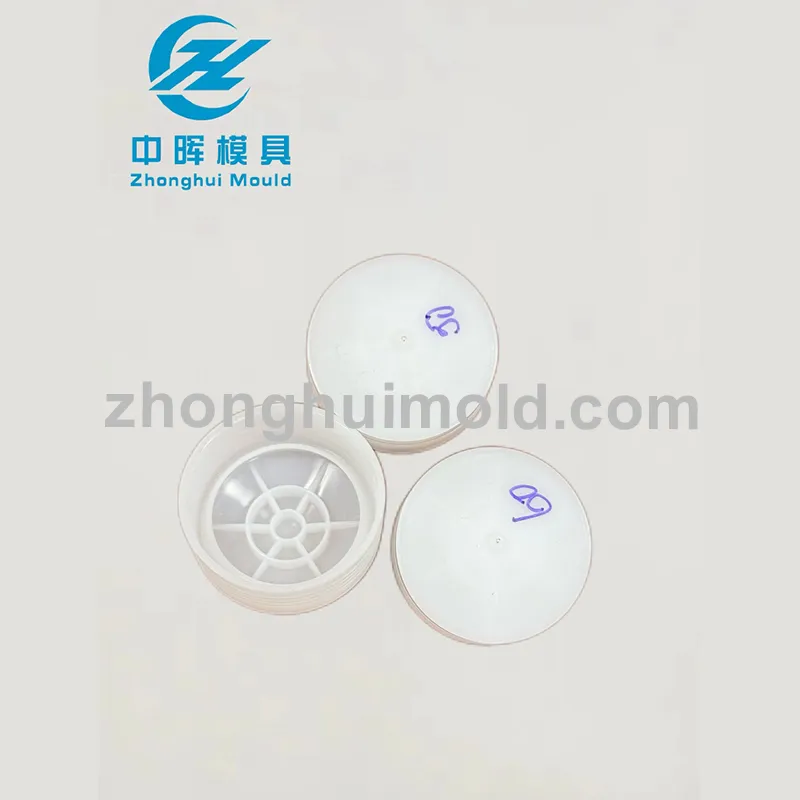

Sealant plungers are widely used in packaging, dispensing, and sealing applications. They must be manufactured with accurate dimensions and smooth surfaces to ensure proper fit, reliable movement, and strong sealing performance. When production volumes are high, a multi-cavity mold becomes especially valuable. A 16-cavity design allows sixteen identical parts to be formed at the same time, significantly improving productivity while maintaining part consistency.

What Is a Custom 16‑Cavity Sealant Plunger Injection Mold?

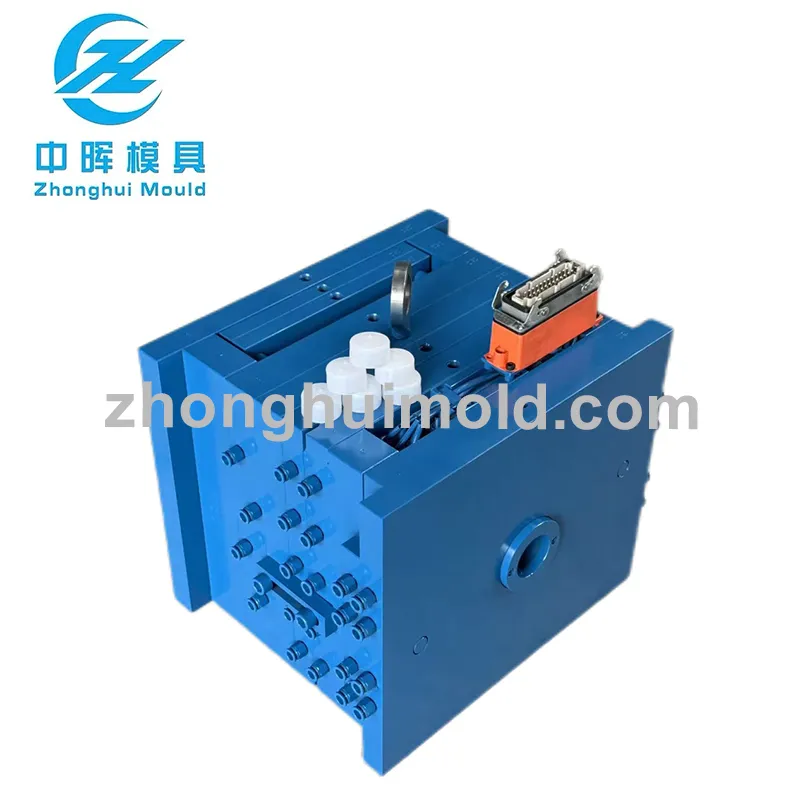

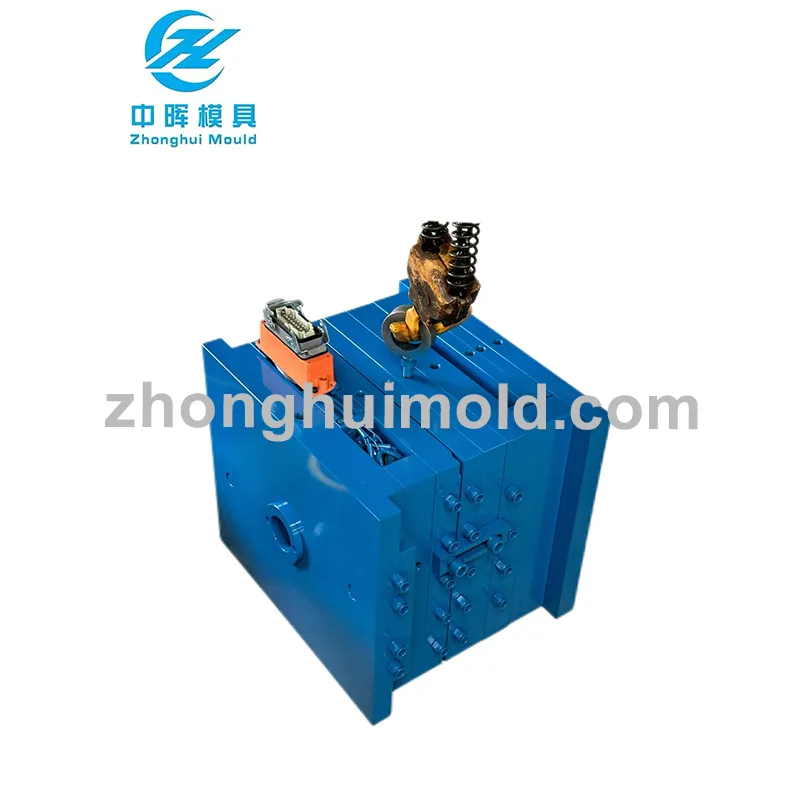

A Custom 16‑Cavity Sealant Plunger Injection Mold is a specially designed mold tool used in injection molding machines to produce sixteen sealant plunger components per molding cycle. The word “custom” means the mold is engineered according to the specific design, size, material, and performance requirements of the part. This is different from standard molds, which are made for general use and may not provide the exact specifications needed for specialized products.

The mold usually consists of several major components, including the cavity plate, core plate, runner system, ejector system, cooling channels, and guiding elements. Each cavity is machined with extreme precision so that every molded plunger is nearly identical in shape and quality. In a 16-cavity mold, balance across all cavities is critical. If one cavity fills differently from the others, product weight, dimensions, and surface finish may vary, which can affect performance during use.

Why Use a 16-Cavity Mold?

The main advantage of a 16-cavity mold is productivity. Instead of producing one part per cycle, the mold produces sixteen parts simultaneously. This means the output can be much higher without increasing machine cycle time dramatically. For manufacturers working with large orders or repeat production, this can reduce per-part cost and improve overall efficiency.

Another important benefit is consistency. Because all parts are produced under the same injection conditions, the dimensional variation among pieces is typically low. This is especially important for sealant plungers, where small defects or uneven dimensions can lead to leakage, poor sealing, or assembly problems.

A 16-cavity mold also helps optimize machine utilization. The same injection molding machine can produce more parts in the same amount of time, which improves equipment productivity and can lower labor and operational costs. For businesses aiming to scale production while controlling expenses, this type of mold can be a very practical investment.

Design Considerations for Sealant Plunger Molds

Designing a Custom 16‑Cavity Sealant Plunger Injection Mold requires careful planning. Since the sealant plunger must often fit precisely into a cartridge or dispensing system, dimensional accuracy is essential. Several factors must be considered during mold design.

1. Part Geometry
The shape of the plunger affects how it fills, cools, and ejects from the mold. Features such as sealing lips, ribs, grooves, and thickness transitions must be engineered carefully to avoid warpage or sink marks. A smooth and balanced geometry helps ensure stable molding results.

2. Material Selection
The resin used for the plunger plays a major role in product performance. Common materials may include polyethylene, polypropylene, or other engineering thermoplastics depending on the application. The chosen resin must have suitable flexibility, chemical resistance, and durability. The mold design must match the behavior of the selected plastic material.

3. Runner System
In a multi-cavity mold, the runner system distributes molten plastic evenly to all sixteen cavities. A balanced runner layout is essential to prevent some cavities from filling too early or too late. Poor balance may cause inconsistent part weight or visual defects. Hot Runner and cold runner systems can both be used depending on production requirements and cost considerations.

4. Cooling Efficiency
Cooling is one of the most important factors in injection molding. Efficient cooling reduces cycle time and helps maintain part stability. For a 16-cavity mold, the cooling channels must be arranged to provide uniform temperature control across all cavities. Uneven cooling can cause warpage, shrinkage, or differences in part dimensions.

5. Ejection System
Since sealant plungers often have specific shapes and surface requirements, the ejection system must remove each part cleanly without deformation. Ejector pins, sleeves, or other release mechanisms should be positioned carefully to avoid damaging the molded part.

Benefits of Customization

The “custom” aspect of a Custom 16‑Cavity Sealant Plunger Injection Mold is one of its most important advantages. A customized mold can be tailored to meet exact production needs. This includes part size, wall thickness, material flow, surface finish, and production volume.

Customization also allows manufacturers to improve product performance. For example, if a sealant plunger must fit tightly into a specific dispensing tube, the mold can be designed to match that exact fit. If the plunger needs to resist certain chemicals or provide better flexibility, the mold can be optimized for the selected material and part structure.

In addition, custom molds can help improve manufacturing efficiency. The mold can be engineered to shorten cycle times, reduce material waste, and minimize post-processing. Features such as optimized gate locations, balanced flow paths, and precise venting can all contribute to smoother production.

Common Challenges in Multi-Cavity Mold Production

While a 16-cavity mold offers many benefits, it also presents technical challenges. One of the biggest challenges is maintaining balance among all cavities. Because the plastic melt must travel through several channels before reaching each cavity, slight differences in flow resistance can lead to uneven filling.

Another challenge is maintaining tight tolerances. Since all sixteen cavities must produce identical parts, even small machining errors or thermal variations can affect product quality. High-precision toolmaking and careful mold testing are necessary to ensure consistent results.

Flash, short shots, and sink marks are also possible issues if the mold is not properly designed or if process parameters are not well controlled. To avoid these problems, mold designers and molding technicians must work closely together during the development stage and during trial runs.

Quality Control in Mold Manufacturing

Quality control is essential when producing a Custom 16‑Cavity Sealant Plunger Injection Mold. Every stage of the mold-making process should be inspected carefully. This includes raw material selection, CNC machining, electrical discharge machining, polishing, assembly, and trial molding.

Dimensional inspection tools such as coordinate measuring machines, calipers, and optical equipment are often used to verify cavity accuracy. Surface finish must also be checked, especially if the plunger requires smooth sealing performance. During trial production, sample parts from each cavity should be tested for weight, size, appearance, and functional fit.

Because all cavities must perform consistently, testing should not focus on only one sample. Instead, every cavity should be evaluated to confirm that the entire mold is balanced and reliable. This helps reduce the risk of downstream assembly issues or customer complaints.

Maintenance and Service Life

Like all precision tools, injection molds require regular maintenance. A 16-cavity mold contains many working surfaces and moving components, so it should be cleaned, lubricated, and inspected routinely. Wear on gates, ejector pins, cooling channels, and cavities can affect product quality over time.

Proper maintenance extends the service life of the mold and protects production stability. Removing residue, checking for corrosion, monitoring wear, and repairing minor damage early can prevent expensive downtime. When cared for properly, a high-quality custom mold can support long-term production with excellent repeatability.

Applications of Sealant Plunger Injection Molds

Sealant plungers are used in many industries where controlled dispensing and sealing are required. They may be found in construction sealing systems, adhesive cartridges, chemical packaging, and other industrial or consumer product formats. The exact application depends on the design of the plunger and the container or dispensing system it supports.

A Custom 16‑Cavity Sealant Plunger Injection Mold is especially useful in large-scale production environments where many identical plungers are needed. Its ability to produce high volumes quickly makes it suitable for standardized products used in repeated assembly or packaging processes.

Choosing the Right Mold Strategy

When planning a production project, manufacturers should consider whether a 16-cavity design is the best option. If demand is high and part geometry is stable, a multi-cavity mold can provide excellent value. However, if the product design is still changing frequently or if very complex features are involved, a smaller-cavity mold may be better during early development.

The right choice depends on several factors, including annual output, part complexity, machine capacity, material behavior, and budget. A carefully engineered Custom 16‑Cavity Sealant Plunger Injection Mold can deliver impressive results when production requirements are well defined.

Conclusion

A Custom 16‑Cavity Sealant Plunger Injection Mold is a powerful solution for manufacturers seeking efficiency, consistency, and high-volume output. By producing sixteen parts per cycle, it helps reduce production cost while improving throughput. Its customized design ensures that the mold matches the exact needs of the sealant plunger, from geometry and material flow to cooling and ejection performance.

Although multi-cavity molds require advanced engineering and strict quality control, the long-term benefits can be substantial. With proper design, manufacturing, and maintenance, this type of mold can support stable, reliable, and profitable production for a wide range of sealant applications. For businesses focused on precision and scale, investing in a well-designed custom multi-cavity mold can be a smart and strategic decision.
