In modern plastic manufacturing, efficiency, consistency, and precision are essential for producing components that meet demanding industrial requirements. One of the most effective solutions for large-scale production of small plastic parts is the 16‑Cavity Silicone Sealant Bottom Cap Injection Mold. This type of mold is specifically designed to manufacture bottom caps used in silicone sealant packaging and dispensing systems. Because it can produce sixteen parts in a single injection cycle, it offers substantial advantages in productivity, unit cost reduction, and part uniformity.

Silicone sealant packaging components must perform reliably in real-world use. A bottom cap may seem like a simple part, but it plays a critical role in sealing, supporting, and protecting the contents of the tube or cartridge. It must have the right dimensions, smooth surfaces, stable mechanical properties, and accurate fit with the rest of the assembly. For these reasons, the design and production of a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold require careful planning and expert tooling knowledge.

Understanding the Function of the Bottom Cap

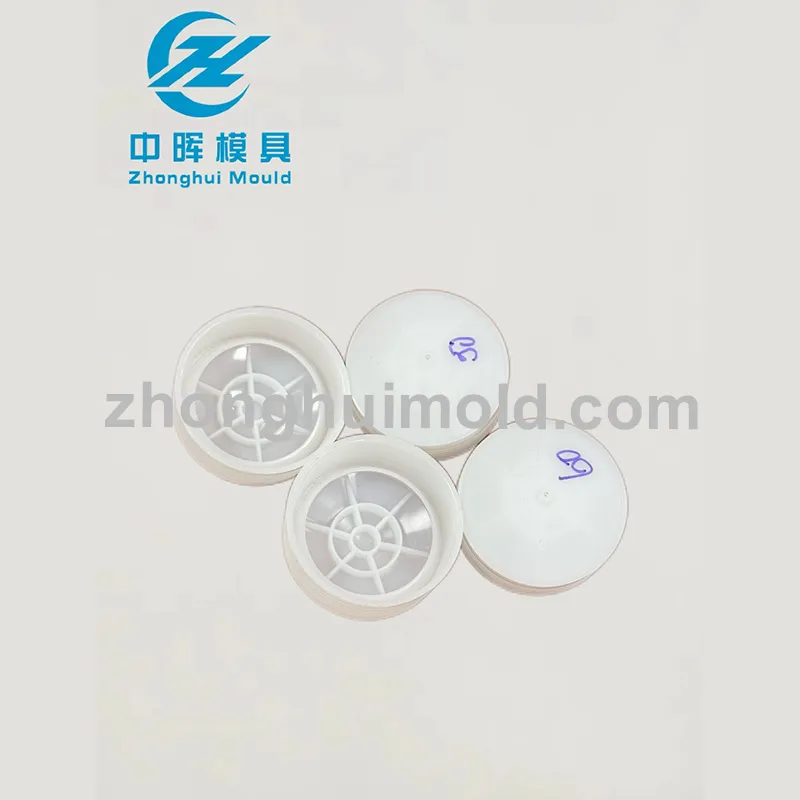

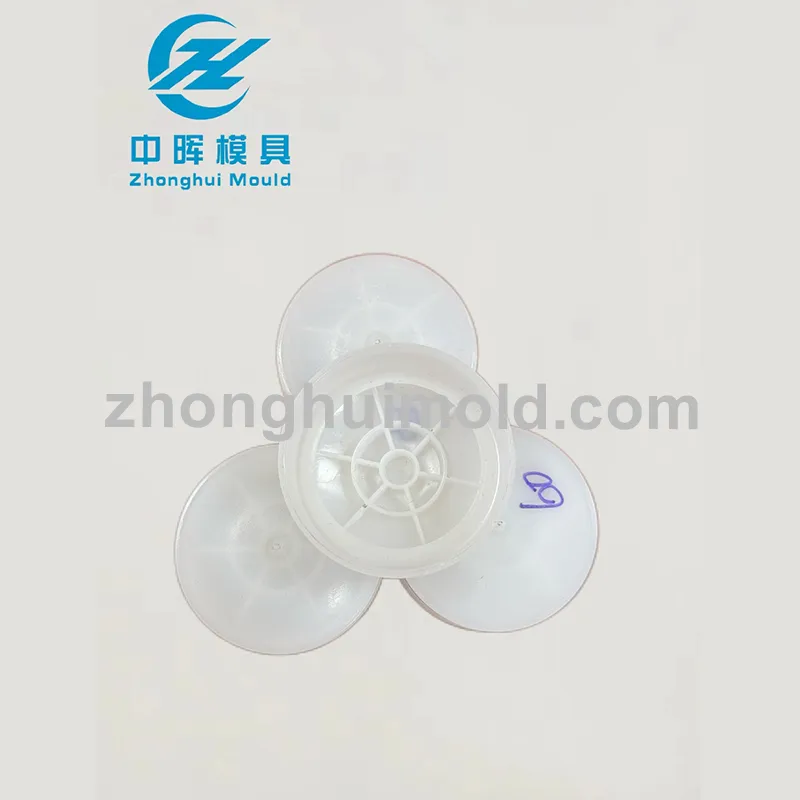

The bottom cap of a silicone sealant container is more than just a closing component. It helps secure the sealant inside the tube, prevents leakage during storage and transportation, and supports the overall structure of the package. In many applications, the bottom cap also works with the piston or plunger system to improve dispensing performance. If the cap is poorly molded, the result may be leakage, weak sealing, assembly problems, or reduced shelf life of the product.

Because sealant products are used in construction, automotive repair, household maintenance, and industrial bonding, the bottom cap must remain consistent in quality. A 16‑Cavity Silicone Sealant Bottom Cap Injection Mold ensures that every part produced maintains the same geometry and functional performance, which is essential for automated assembly and high-volume packaging lines.

Why Choose a 16-Cavity Mold?

The main reason manufacturers choose a multi-cavity mold is production efficiency. Instead of producing one part per cycle, a 16-cavity design produces sixteen identical parts each time the mold closes and injects material. This greatly improves output without requiring sixteen separate machines. For products with stable demand and relatively small part size, this is one of the most cost-effective molding strategies available.

A 16‑Cavity Silicone Sealant Bottom Cap Injection Mold offers several important benefits:

1. Higher production capacity
  With sixteen cavities, the mold can deliver significantly more parts in the same amount of machine time.

2. Lower cost per part
  Since more parts are produced per cycle, the material and processing costs are distributed across a larger output.

3. Better consistency
  When cavities are properly balanced, each part has similar dimensions and surface quality.

4. Efficient use of machine resources
  One injection molding machine can support a much larger daily output, reducing overall equipment demand.

5. Suitable for mass production
  This mold type is ideal for products with high and stable demand, such as sealant packaging accessories.

However, a multi-cavity mold also brings challenges. The runner system must be carefully balanced so that each cavity fills evenly. Cooling must be uniform to prevent warpage or shrinkage differences. Ejection must be reliable to avoid damage to the parts. Therefore, the mold is not simply a larger version of a single-cavity tool; it requires advanced engineering and precise machining.

Key Design Considerations

The design of a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold begins with understanding the part structure, material properties, and production goals. Several design factors are especially important.

1. Part geometry
The bottom cap typically includes threads, sealing lips, ribs, or snap-fit features. These details must be reproduced accurately in the mold. Even small dimensional errors can affect sealing performance or assembly fit.

2. Material selection
Common thermoplastics used for such parts may include polypropylene, polyethylene, or other engineering plastics depending on the required flexibility, stiffness, and chemical resistance. The mold must be designed according to the shrinkage rate and flow behavior of the selected material.

3. Gate design
The gate controls how molten plastic enters each cavity. In a 16-cavity mold, the gate system must be designed to ensure balanced filling. Improper gate placement can cause short shots, weld lines, air traps, or inconsistent appearance.

4. Runner balance
The runner system must deliver equal flow to all cavities. If one cavity fills earlier than another, part quality may vary. Balanced runners are essential for maintaining uniform pressure distribution and part weight.

5. Venting
Adequate venting allows trapped air to escape during injection. Without proper vents, burns, incomplete filling, or poor surface finish may occur.

6. Cooling system
Cooling is a major factor in cycle time and product quality. Efficient and evenly distributed cooling channels help reduce warpage, shorten the molding cycle, and improve dimensional stability.

7. Ejection system
Because the bottom cap may include thin walls or delicate features, the ejection system must release the part smoothly. Uneven ejection can lead to deformation or visible marks.

Mold Material and Tool Steel Selection

The durability of a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold depends heavily on the choice of mold steel. Since this mold is intended for repeated production cycles, the steel must resist wear, corrosion, and mechanical stress. High-quality tool steels are usually selected for the cavity and core components to maintain long service life and stable precision.

In addition to the main steel, surface treatment may also be applied to improve hardness, reduce friction, and extend mold life. Polishing quality is also important, especially if the finished part must have a smooth appearance or low friction during assembly. A well-finished cavity surface can improve demolding, reduce defects, and enhance part consistency.

Precision Machining and Mold Making

The manufacturing of a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold requires advanced machining processes such as CNC milling, electrical discharge machining, wire cutting, and precision grinding. Because all sixteen cavities must be identical, even minor machining differences can create part-to-part variation. This is why tight dimensional control is essential throughout the mold-making process.

High-precision mold making also includes careful assembly of the mold base, cavity inserts, core inserts, and runner components. After machining, the mold must be inspected and tested to verify alignment, cavity uniformity, and part performance. Trial injection runs help identify issues such as flash, sink marks, shrinkage, or incomplete filling. Adjustments can then be made to optimize the final production result.

Importance of Balanced Filling

One of the most critical aspects of a multi-cavity mold is balanced filling. In a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold, all sixteen cavities should fill at nearly the same time and under similar pressure conditions. If some cavities fill faster than others, the resulting parts may differ in weight, dimensions, or mechanical properties.

Balanced filling depends on several factors:

- runner geometry
- gate size
- melt temperature
- injection pressure
- mold temperature
- material viscosity

Engineers often use mold flow analysis to predict how plastic will move through the mold. This simulation helps identify potential problems before the mold is built, saving time and cost. By optimizing the flow path in advance, the mold can achieve better performance during actual production.

Cycle Time and Production Efficiency

Production efficiency is a major advantage of the 16‑Cavity Silicone Sealant Bottom Cap Injection Mold. Because many parts are produced at once, the mold supports high output while keeping labor and machine time relatively low. The cycle time is influenced by injection time, holding time, cooling time, and ejection time. Among these, cooling time is often the largest portion of the cycle.

Reducing cycle time without compromising part quality can significantly improve profitability. To do this, the mold must have an effective cooling layout, proper material selection, and reliable ejection. When everything is optimized, manufacturers can produce large quantities of bottom caps efficiently and consistently.

Quality Control in Production

Quality control is essential in any injection molding project, especially for a multi-cavity mold. Since sixteen parts are produced simultaneously, process variation must be carefully monitored. Common inspection points for a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold include:

- cavity dimensions
- thread accuracy
- wall thickness consistency
- surface finish
- flash or burrs
- warpage
- shrinkage
- part weight uniformity

A good quality control system may include first-article inspection, in-process sampling, and final packaging checks. Maintaining consistent molding parameters is also important. Once a stable process window is established, the mold can run reliably over long production periods.

Maintenance and Long-Term Performance

Like all precision tools, a 16‑Cavity Silicone Sealant Bottom Cap Injection Mold requires regular maintenance. Cleaning, lubrication, inspection, and periodic replacement of worn components help preserve performance. Residue buildup, corrosion, and mechanical wear can gradually affect cavity quality and part release. If maintenance is neglected, problems such as flash, sticking, or dimensional drift may occur.

Preventive maintenance is especially valuable in high-volume production. By inspecting the mold at scheduled intervals, manufacturers can detect early signs of wear and correct them before major issues develop. This helps extend mold life and protect production continuity.

Applications and Market Value

The 16‑Cavity Silicone Sealant Bottom Cap Injection Mold is useful in the packaging and dispensing industries where large quantities of sealant containers are needed. The bottom cap may be used in products for construction sealants, adhesives, fillers, and other tube-based materials. Since the end products often serve professional and industrial markets, consistency and reliability are important selling points.

Manufacturers benefit from this mold type because it supports both product standardization and operational efficiency. When combined with high-quality resin, accurate mold design, and stable processing conditions, the mold can deliver parts that meet the expectations of demanding applications.

Conclusion

The 16‑Cavity Silicone Sealant Bottom Cap Injection Mold is a highly efficient and practical solution for mass-producing small but important plastic components. Its multi-cavity structure allows manufacturers to achieve high output, lower unit cost, and excellent part consistency. At the same time, it demands careful engineering in the areas of cavity design, runner balance, cooling, venting, ejection, and material selection.

A well-designed mold can support long-term production, stable quality, and improved profitability. For industries that require large quantities of reliable bottom caps for silicone sealant packaging, this mold type offers a strong combination of precision and productivity. As production demands continue to grow, the importance of advanced multi-cavity injection molding solutions will only increase, making the 16‑Cavity Silicone Sealant Bottom Cap Injection Mold an essential tool in modern manufacturing.
